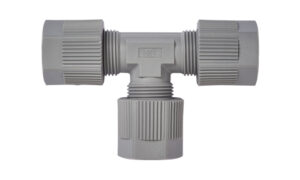

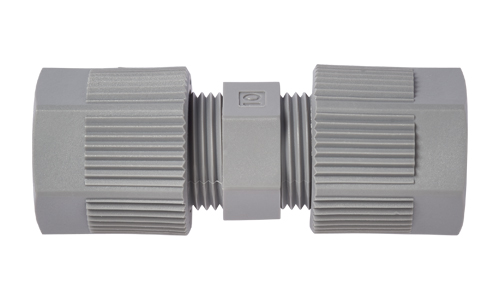

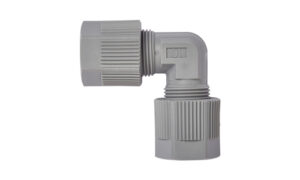

Unions PA – SO 3..
Specifications
Inexpensive and versatile

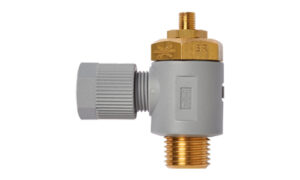

- unions, valves
- Ø 4 to 12 mm
- 10 bar
- -40°C to +80°C
- for non-aggressive air, gases and liquids in a non-aggressive environment, e.g. in industrial equipment manufacturing
Characteristics, speciality
• easy and fast to install• advantageous price• combinations possible with unions of brass, steel and stainless steel• extensive range
Material
Moulded body, union nut and ferrule are made of heat-stabilized grey polyamide 6.6.
Nominal pressure PN
10 bar at +23°C (safety factor 3)higher pressure on request
Temperature range
-40°C to +80°C
Tubes to use
True-to-tolerance tubes and hoses with clean surface and uniform wall thickness.
Tapered male threads
For sealing the male threads we recommend the PTFE tape AC 840/841 or the sealing stick “Plasto-Joint” AC 833.
